Overview
Many 2024 Toyota Tundra owners choose TRD PRO style grilles that include LED marker lights
Improper wiring is one of the most common causes of post installation issues
This guide explains
-
Where to connect grille LED power
-
How to use fuse tap safely
-
Common grounding mistakes
-
Weatherproofing best practices
Applies to 2022–2025 Toyota Tundra models
Understanding the LED Marker Light Circuit

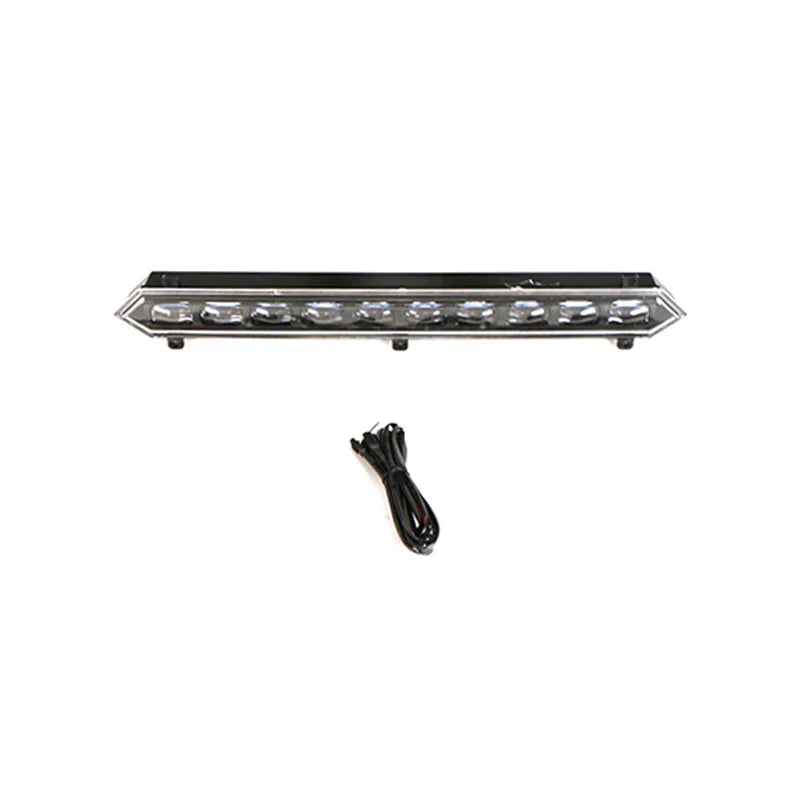

Aftermarket grille LED markers are low voltage accessories
They typically require
-
12V power source
-
Ground connection
-
Optional ignition controlled source
Most kits include
Pre wired LED harness
Inline fuse
T tap or fuse tap connector
Where to Get Power on 2024 Tundra
Option 1 Fuse Tap Recommended
Use interior fuse box
Select fuse related to
ACC
Ignition
Parking light
Avoid airbag or ECU circuits
Use a fuse tap adapter rated for proper amperage
Option 2 Parking Light Splice
Connect to parking light wire
Allows LEDs to activate with headlight switch
Verify wire using multimeter before tapping
Ground Connection Best Practice
Improper ground is the most common issue
Correct method
-
Use factory chassis bolt
-
Remove paint from contact area
-
Tighten securely
Do not ground to thin sheet metal tabs
Common LED Problems After Installation
LED Not Turning On
Possible causes
Blown fuse
Incorrect fuse slot
Loose ground
LED Flickering
Caused by
Weak ground
Loose crimp
Moisture in connector
One Side Not Working
Inspect harness split point
Check polarity
Weatherproofing Tips
Use
Heat shrink tubing
Electrical tape rated for engine bay temperature
Dielectric grease in connectors
Avoid exposed crimp connectors
Water intrusion leads to corrosion
Does LED Wiring Affect Toyota Safety Systems
No
LED marker lights are separate low voltage circuit
They do not interfere with
Front camera
Toyota Safety Sense radar
Unless wiring damages factory harness
Step by Step Basic Wiring Procedure
1 Disconnect battery
2 Mount grille and secure mechanically
3 Route LED harness away from radiator fan
4 Connect fuse tap to selected slot
5 Attach ground to chassis bolt
6 Reconnect battery
7 Test before reinstalling trim
FAQ
Can I wire grille LEDs directly to battery
Yes
But they will stay on unless relay or switch is added
Is fuse tap safer than splicing
Yes
It is cleaner and reversible
Do LED markers require relay
Usually no
Most draw minimal current
Final Recommendation
For 2024 Toyota Tundra grille LED installation
Use fuse tap method
Secure proper ground
Weatherproof all connections
Most LED failures are wiring related
Not product related
