2024 Toyota Tundra Front Camera Compatibility Guide
Aftermarket Grille Replacement Alignment Bracket and TSS Considerations
Overview
Replacing the front grille on a 2024 Toyota Tundra is one of the most common exterior upgrades
However vehicles equipped with a factory front camera require additional attention during installation
Improper bracket positioning or camera misalignment may lead to distorted image or warning messages
This guide explains
-
How the front camera is mounted on 2022–2025 Tundra
-
What changes when replacing the grille
-
Whether recalibration is required
-
Common installation mistakes
This article applies to all 2022–2025 Toyota Tundra trims equipped with factory front camera
How the Front Camera Is Mounted on 2024 Tundra
On 2024 Tundra models equipped with front camera
The camera module is mounted to a bracket integrated into the grille assembly
The bracket ensures
-
Proper vertical angle
-
Correct forward tilt
-
Stable mounting against vibration
The Toyota Safety Sense radar is positioned separately behind the grille area and is not the same component as the camera
Understanding this difference is critical
Camera misalignment affects image
Radar misalignment affects driver assistance systems
What Happens When You Replace the Grille

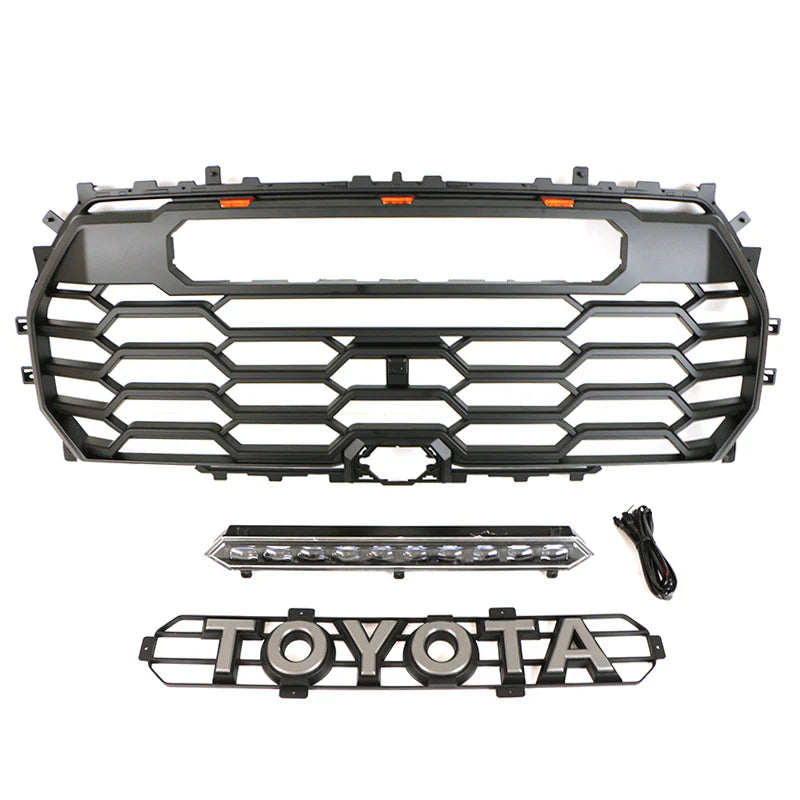

When installing an aftermarket TRD PRO style grille
Three scenarios may occur
Scenario 1
Aftermarket grille includes camera transfer bracket
This allows direct reuse of factory camera module
Minimal modification required
Scenario 2
Grille supports camera but does not include bracket
Factory bracket must be transferred
Or separate adapter must be purchased
Incorrect transfer may cause tilt or vibration
Scenario 3
Grille not designed for camera equipped vehicles
This may require modification
Not recommended for daily drivers
Does Replacing the Grille Affect Camera Function
In most cases
If the camera mounting geometry remains identical to OEM specification
No recalibration is required
However image angle may shift if
-
Bracket sits too high or low
-
Mounting screws unevenly tightened
-
Plastic flex under heat
Always test camera view before full bumper reassembly
Common Front Camera Problems After Grille Installation
Tilted Horizon Line
Usually caused by bracket angle change
Loosen and realign before tightening
Vibration or Shaking Image
Caused by insufficient bracket support
Ensure mounting tabs are flush
Camera Error Message
Check wiring connector
Ensure no pin damage during removal
Does It Affect Toyota Safety Sense Radar
The front camera and TSS radar are separate systems
However both are located in the grille region
After grille replacement
Ensure
-
Radar sensor window is not blocked
-
No metal mesh directly covering radar area
-
No paint applied over radar cover
If radar warning light appears
Professional recalibration may be required
Installation Best Practices
1 Disconnect battery before unplugging camera
2 Photograph original bracket orientation
3 Transfer camera carefully without twisting harness
4 Hand tighten first then torque evenly
5 Test camera before reinstalling upper trim
Which Grilles Are Compatible With Front Camera
When selecting TRD PRO style grille for 2024 Tundra
Verify product page states
-
Compatible with front camera equipped vehicles
-
Bracket included or not included
-
Supports Toyota Safety Sense
Never assume compatibility based on appearance
FAQ
Do I need dealer recalibration after grille replacement
Usually no
If bracket geometry remains unchanged
Can I reuse my factory camera module
Yes
The module is reused
Only mounting structure changes
Is camera alignment sensitive
Yes
Even small angular shifts can change perceived image level
Final Recommendation
If your 2024 Tundra has a factory front camera
Choose a grille that either
Includes a dedicated camera transfer bracket
Or clearly supports OEM bracket reuse
Avoid universal grille designs
Camera alignment precision is more important than cosmetic design
